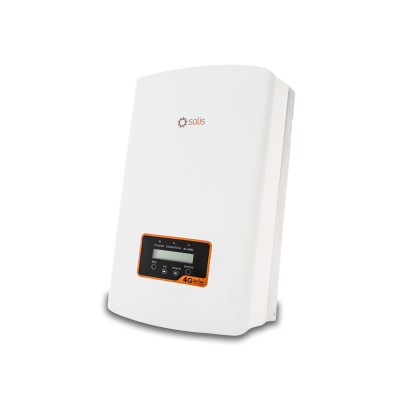

Solis 4G 4.0kW Solar Inverter - 1 Phase with DC

SKU: Solis-4K-4G-DC

Overview
Description
Technical Information

Overview
Description
Technical Information

This slim and ultra-lightweight Solis inverter design allows one person to install it with ease. The Solis inverter is aesthetically pleasing making it ideal for domestic installations. It has over 97% max. efficiency. The inverter is IP65 protected alongside several other protection functions. The input voltage range is widespread as well as having a dual MPPT design with precise MMPT algorithm. WiFi and GPRS are optional interfaces which can be purchased separately and retrofitted at any time. A WiFi and monitoring app is available to allow the user to monitor their system remotely.

Manufacturer Solis
Weight 11.5 kg
Phases 1 Phase
Power Rating kW 4
Inverter Type String Inverter
Built in DC Yes
No. of MPPT 2
Built in Communication Optional
Commodity Code 85044030
Dimensions (mm) (H x W x D) 543 x 310 x 160

SOLIS 4G UPGRADES INCLUDE:

Built-in Export Power Management (EPM) future proof; flexibility where DNO issues
High-Frequency Switching @ 30KHz (Which means the Solis inverter can act more quickly, while being smaller, and is generally more efficient)
Fifth Generation Infineon IGBT technology – Improves efficiency by 0.5-0.8%
Latest Texas Instruments TI2806 DSP Chip – Reduces CPU processing speed. PMW resolution increased x 1.5
All New Heat Sync design – Lower operating temperatures
The range of 4G inverters have been reduced in size and weight with the physically smaller range
Monitoring – Plugin WiFI, GPRS and new LAN stick (With dongle in the same way as current model LAN is hardwire cabled version)
