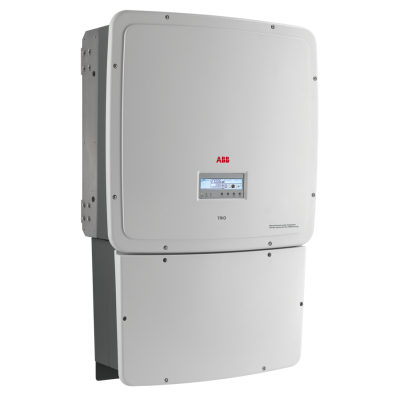

Fimer Trio 27.6kW Solar Inverter - 3 Phase
The three-phase commercial inverter offers more flexibility and control to installers who have large installations with varying aspects or orientations.
- Manufacturer Fimer
- Weight 75.0 kg
- Phases 3 Phase
- Power Rating kW 27.6
- Inverter Type String Inverter
- Built in DC Yes
- No. of MPPT 2
- Built in Communication Optional
- Commodity Code 85044088
- Dimensions (mm) (H x W x D) 1061 x 702 x 292
The dual input section containing two independent Maximum Power Point Tracking (MPPT), allows optimal energy harvesting from two sub-arrays oriented in different directions. The TRIO features a high speed and precise MPPT algorithm for real power tracking and improved energy harvesting.
• True three-phase bridge topology for DC/AC output converter
• Transformerless topology
• Each inverter is set on specific grid codes which can be selected in the field
• Detachable wiring box to allow an easy installation
• Wide input range
• ‘Electrolyte-free’ power converter to further increase the life expectancy and long term reliability
NOTE: If installing a PV system using TRIO in North America, please verify that the selected PV module is listed for use in 1000Vdc systems in accordance with local electrical codes.
