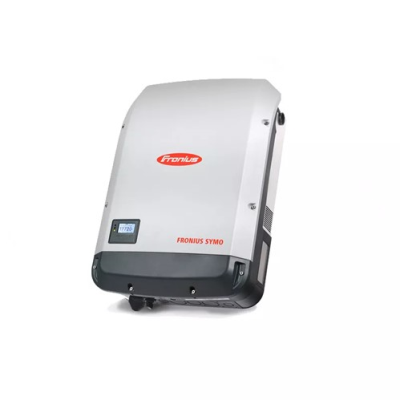

Fronius Symo Advanced 10kW Solar Inverter - 3 Phase (Lite)
SKU: 4.210.159.001
The transformerless Fronius Symo is the ideal compact three-phase solar inverter for commercial applications of all sizes. The Fronius Symo is the clear commercial choice: boasting power classes from 10 kW to 24 kW, all necessary features are fully integrated, Fronius SuperFlex Design with dual MPPT, and a streamlined installation process.
The SnapINverter hinge mounting system, lightweight inverter and easy commissioning app make installation possible in under fifteen minutes.
Several industry-leading features come standard with the Fronius Symo including field proven Arc Fault Circuit Interruption (AFCI), CEC 2015 compliance, and Fronius’ superb online and mobile monitoring platforms when a Datamanager 2.0 card is added. Also field serviceable, The Fronius Symo is the most communicative, efficient, sustainable and streamlined three-phase string inverter available on the market.
The “Lite” Symo inverters do not have the DataManager card and do not have Web monitoring. Only one inverter with datalogger card is needed for every 100 inverters, the others can be daisy-chained together with Ethernet cables.
- Manufacturer Fronius
- Commodity Code 85044086
- Dimensions (mm) (H x W x D) 725 x 510 x 225
- Dual-MPPT inputs
- Integrated DC disconnect
- Transformerless design for higher efficiency
- SUNSPEC communications hardware build-in
- Very wide operating temperature from -40C through +60C
- Sealed NEMA 4X housing for indoor and outdoor mounting
- Can be mounted completely horizontal, for example for flat roof mounts
- Very quick and easy installation due to Fronius’ unique SnapINverter design
