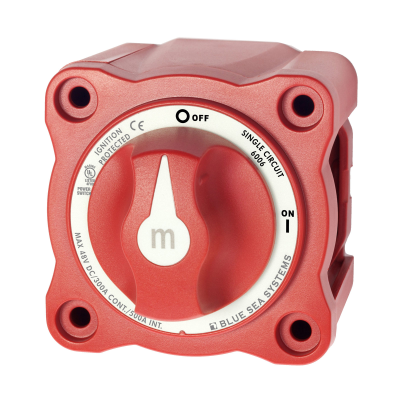

Blue Sea Systems m-Series 48V On/Off Battery Switch

SKU: 6006M

Blue Sea Systems 6006M - 48V Battery Switch in Red

Switches a single battery to a single load group

  • Ignition protected safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts



Seen a better price?
Login to see Trade Prices
  • Manufacturer Blue Sea Systems
  • Accessory Product Type Battery Isolators & Combiners
  • Commodity Code 85369095
  • Dimensions (mm) (H x W x D) 71.7 x 71.7 x 77.9

On/Off Single Circuit - Switches a single battery to a single load group.

  • 300A continuous rating for outboards & small engines.
  • Single circuit On/Off.
  • 2 switch positions.
  • 1 battery input.

FEATURES

  • Ignition protected - safe for installation aboard gasoline/diesel-powered boats.
  • Studs accepts 3/8" (M10) ring terminals.
  • 7/8" (22mm) stud length accepts multiple cable terminals.
  • Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction.
  • Case design allows surface, rear, or front panel mounting.
  • Tin-plated copper studs for maximum conductivity and corrosion resistance.
  • Blue Sea Systems one-piece terminal stud design never loosens over time.

CERTIFICATIONS

  • Meets UL 1500 and SAE J1171 external ignition protection requirements.
  • Meets American Boat and Yacht Council (ABYC) requirements.
  • Waterproof - IP66 rated against powerful water jets.
  • UL Listed - UL 1107 electric power switches.
  • ISO 8846
