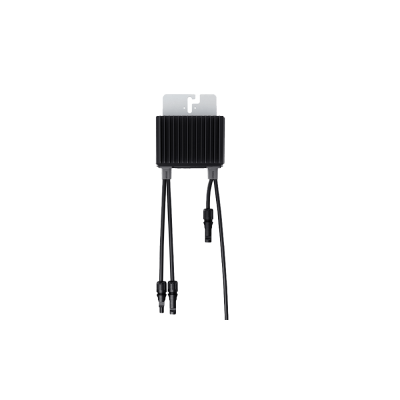

SolarEdge H1300 Power Optimizer
SKU: H1300-1GV4VRV
SolarEdge H1300 Power Optimizer
For ground mount installations with the SolarEdge TerraMax™ 330kW Inverter
Maximize energy production and mitigate all types of mismatch-losses, from manufacturing tolerance to partial shading and aging - while ensuring maximum system safety.
- Manufacturer SolarEdge Technologies
- Commodity Code 90328900
- Dimensions (mm) (H x W x D) 290 x 400 x 400
Optimized for Community Solar
- By connecting directly to modules onsite, the H1300 pairs exclusively with the SolarEdge TerraMax™ 330kW Inverter to ensure increased energy production and mismatch loss mitigation.
Delivering More Power
- Supporting high power 650W modules, SolarEdge H1300 Power Optimizers enable modules in the array to work independently. The underperformance of one module will not affect others in the string, eliminating mismatch-related power losses due to shading, soiling, or aging, enabling higher overall energy production.
- Meanwhile, DC optimization helps harvest more energy from bifacial modules by mitigating electrical losses caused by the varying ground albedo, shading, obstructions, or other rear-side factors.
The Flexibility to Outperform Anywhere
- Overcome irregular-shaped fields, sloped terrains, and obstacles causing shading by placing Power Optimizers at multiple orientations, angles, and tilts. Inter-row shading losses are minimized with module level MPPT. Plus, up to 80-module string length is supported, resulting in fewer strings and enabling up to 50% BoS savings when compared to traditional string solutions.
Ensure Maximum Uptime
- The H1300 helps keep production rolling with granular and continuous module-level data monitoring for EPCs and O&M personnel. Track system performance and pinpoint & resolve issues remote or onsite using our Monitoring Platform.
Industry-Leading Safety
- Maximize protection of people & property with exclusive, SafeDC™ built into the H1300 Power Optimizer:
- Built-in SafeDC™: designed to automatically reduce high DC voltage to touch-safe levels in the event of faults and maintenance activities.
- Arc Fault Prevention: automatically recognizes & stops arcs before they occur
- Real-Time Alerts: know the instant a potential issue is detected via the Monitoring Platform
