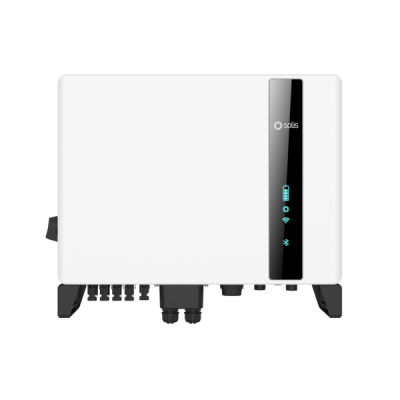

Solis S6 5kW 3 Phase Hybrid Inverter with DC - 3 MPPT for HV Batteries (WIFI/LAN)

SKU: S6-EH3P5K-H-EU

S6-EH3P5K-H-EU
NEW

Solis S6 5kW 3 Phase Hybrid Inverter with DC - 3 MPPT for HV Batteries (WIFI/LAN)

The Solis Hybrid inverter offers flexibility for module design with its 3 MPPT. Its high input current makes it compatible with modern high-performance modules. Thanks to the integrated switching device, selected loads can still be supplied with emergency power in the event of a grid failure.



  • Integrated changeover device for backup power
  • Great flexibility with 3 MPPT
  • Parallel connection of up to 10 hybrid inverters via RS485
  • High input current of 16 A
  • AFCI function integrated

Seen a better price?
Login to see Trade Prices
  • Manufacturer Solis
  • Phases 3 Phase
  • Inverter Application Residential
  • Power Rating kW 5
  • Commodity Code 85044085
  • Dimensions (mm) (H x W x D) 600 x 500 x 230

Product features

  • Mains connection: 3-phase
  • AC output: 5 kVA
  • 5.0 kW emergency power output via separate output
  • MPP tracker: 3 with 1 string output each
  • Max. short circuit current per MPPT: 24 A
  • Max. input current: 16 A
  • Communications: CAN, RS485, Wi-Fi
  • Incl. 1 m battery cable with MC4 connectors
  • 3-phase Smart Meter with 3 current transformers included
  • WiFi module is included in scope of delivery
  • Protection class: IP66
  • Warranty: 5 years
