Victron Cerbo GX MK2
SKU: BPP900450110

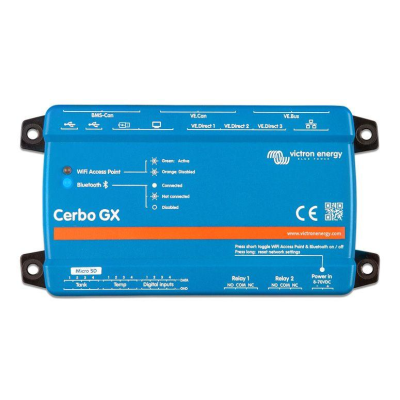

Victron Cerbo GX MK2
This advanced communication hub gives you complete control over your system from anywhere, ensuring optimal performance at all times. Connect effortlessly through our Victron Remote Management (VRM) portal, or access it directly using the GX Touch 50, a multifunction display (MFD), or the VictronConnect app with its integrated Bluetooth functionality. The newest member of the GX range brings together the best in connectivity, setting a new standard for smart power solutions.
The key improvements in the MK2 version compared to the original are:
- Dual fully functional CANbus ports: Now labelled VE.Can 1 and VE.Can 2, replacing the previous setup of one VE.Can and one BMS-Can port.
- Isolated VE.Can 1: Unlike earlier models, this version includes an isolated CANbus port for enhanced performance.
- Reoriented RJ-45 sockets: The sockets have been rotated 180 degrees, making it easier to disconnect cables.
- Enhanced USB functionality: All three USB ports are now fully functional, unlike the original, where one was dedicated solely to powering a GX Touch.
- Digital input upgrades: Digital inputs now support pulse counting for improved data capabilities.
- Manufacturer Victron Energy
- Commodity Code 85176100
- Dimensions (mm) (H x W x D) 60 x 220 x 120
Maximise your system performance
The Cerbo GX maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.
Expand your view
The new (optional) GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
Simple mounting and configuration
The Cerbo GX is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.
Outsmart any power challenge
The Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles it keeps vital systems function flawlessly.
