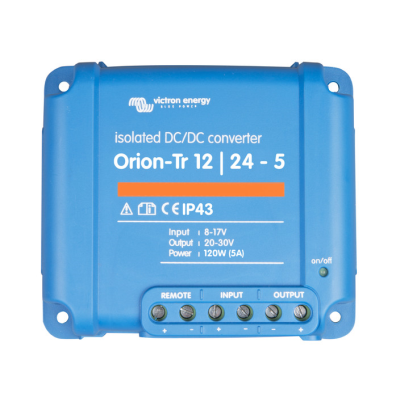

Victron Orion-Tr IP43 12/24V-5A 120W Isolated DC-DC Converter
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
- Manufacturer Victron Energy
- Commodity Code 85044090
- Dimensions (mm) (H x W x D) 100 x 113 x 47
- Input/Output Voltage 12V to 24V
- Isolated Yes
ADJUSTABLE OUTPUT VOLTAGE: CAN ALSO BE USED AS A BATTERY CHARGER
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
ALL MODELS ARE SHORT CIRCUIT PROOF AND CAN BE PARALLELED TO INCREASE OUTPUT CURRENT
An unlimited number of units can be connected in parallel.
When installed with the screw terminals oriented downwards.
No special tools needed for installation.
On 12V and 24V input models only.
