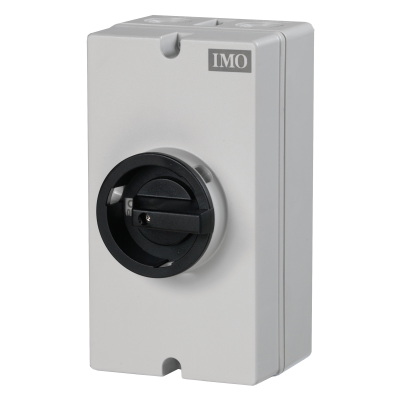

IMO DC Isolator 16A 800VDC - 2 Pole

SKU: SI16-PEL64R-2

IMO DC Isolator 16A 800VDC - 2 Pole

IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

Seen a better price?
Login to see Trade Prices
  • Manufacturer IMO Precision Controls
  • Accessory Product Type Switchgear
  • Commodity Code 85365080
  • Dimensions (mm) (H x W x D) 180 x 98 x 107


  • 16A 800 VDC
  • IP66 Rated Enclosure
  • 2 Pole (Single String)
  • Grey Body With Black Handle

The IMO range of Solar Isolators features an operator-independent trigger ratchet switching mechanism resulting in switching times of less than 5ms; high-reliability knife edge contacts and long arc cooling chambers ensuring safe and effective isolation of DC voltages within solar installations; and additional security with IMO's patented safe lock function.
