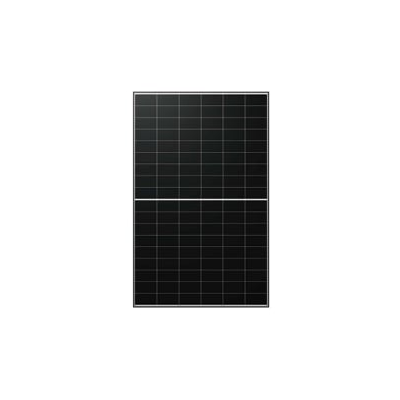

LONGi Solar 545W Hi-MoX10 HPBC + N-type Mono Solar Module

• Manufacturer LONGi Solar

High Output with Long-Term Performance

The LONGi Solar 545W Hi-MoX10 HPBC + N-type Mono Solar Module is engineered for superior energy production, efficiency, and durability. Built with Hybrid Passivated Back Contact (HPBC) technology and N-type monocrystalline cells, it’s designed for commercial and industrial systems that demand dependable, high-output performance.

Maximum Efficiency, Minimal Degradation

This module delivers up to 24.2% efficiency under standard test conditions (STC), ensuring high energy yield per square metre. The LONGi Solar 545W Hi-MoX10 HPBC + N-type Mono Solar Module boasts less than 1% power loss in the first year and maintains a 0.35% degradation rate annually for up to 30 years – thanks to its 30-year linear power output warranty.

Compact, Durable Design

With a robust anodised aluminium alloy frame, the module measures 1990 x 1134 x 30mm and weighs just 25.3kg. Built to withstand 5400Pa front and 2400Pa rear static loading, it includes 3.2mm coated tempered glass and IP68-rated junction box protection.

Optimised Electrical Performance

Maximum Power (Pmax): 545W

Open Circuit Voltage (Voc): 44.98V

Short Circuit Current (Isc): 15.35A

Voltage at Max Power (Vmp): 37.21V

Current at Max Power (Imp): 14.65A

Built for Professional Integration

The module is compatible with 1500V DC systems and integrates seamlessly into large-scale installations. It’s certified to IEC and UL standards, including IEC 61215, 61730, 62941 and UL 61730. With optimised output cables and 120-cell (6x20) layout, it’s tailored for easy installation.

Reliable Warranty Support

Backed by a 15-year product warranty and a 30-year performance warranty, the LONGi Solar 545W Hi-MoX10 HPBC + N-type Mono Solar Module offers peace of mind and dependable energy performance for decades.
