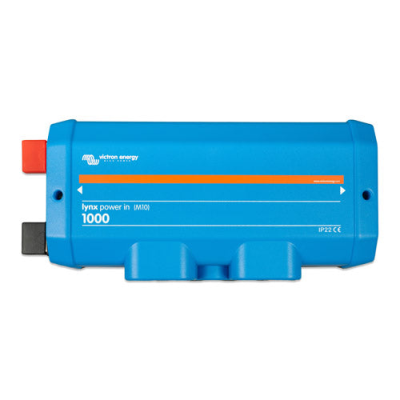

Victron Lynx Power In (M10)

SKU: LYN020102010

LYN020102010

The Victron Lynx Power In M10 contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is a modular DC busbar, used to connect batteries to the Lynx DC distribution system.

Seen a better price?
Login to see Trade Prices
  • Manufacturer Victron Energy
  • Commodity Code 85369010
  • Dimensions (mm) (H x W x D) 282 x 172 x 78
  • IP Rating IP22

- Voltage range 9 - 60Vdc
- Current rating 1000A
- Busbar M8
- Enclosure material ABS
- Enclosure dimensions (hxwxd) 290 x 170 x 80mm
- Busbar material Tinned copper
- Operating temperature range -40°C to +60°
- Storage temperature range -40°C to +60°
- Protection class IP22
