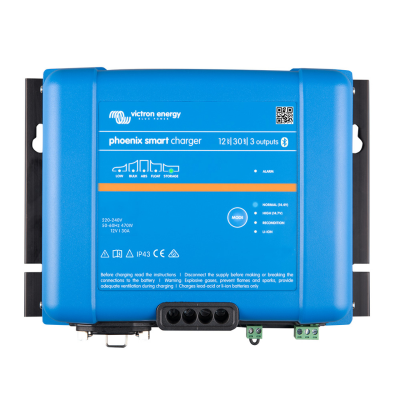

Victron Phoenix Smart IP43 Battery Charger 24V/25A/120-240V 3 Output

SKU: PSC242553095


This adaptive 5-step Phoenix Smart Ip43 charger 24/25(3) can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth built-in so it can be programmed from your phone or tablet using Victron Connect. Its VE Direct port means you can connect it to a Cerbo GX. Its remote port means you can control it from a BMS. Its relay port means you can control external devices from it (only while connected to AC power). It has a 6 stage charge algorithm with storage mode for conventional batteries and a 3 stage algorithm for Lithium batteries. Its IP rating gives it limited protection from sprayed water.

Seen a better price?
Login to see Trade Prices
  • Manufacturer Victron Energy
  • Dimensions (mm) (H x W x D) 180 x 249 x 116

  • 85-265 volt input, 45-65 Hz, 24 volt 25 amp three outputs.
  • Power Factor >0.99
  • Fully programmable charge algorithm accessed via a phone, tablet, Mac or PC using Bluetooth and /or VE Direct using the Victron Connect App
  • 6 Stage charge algorithm for conventional batteries, 3 stage for lithium batteries
  • IEC 320 C14 inlet with retainer clip
  • Charge current 25 amps with low current mode of 12.5 amps available if needed
  • Programmable relay
  • VE Direct port
  • Remote on-off
  • Suitable for use with Li Ion batteries
  • Can be used as a power supply with a fixed output voltage
