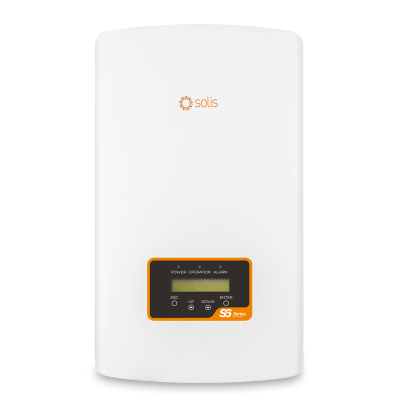

Solis 5G 2.5kW Solar Inverter - 1 Phase with DC
SKU: S6-GR1P2.5K-DC
S6-GR1P(2.5-6)K series inverter is designed for residential PV plants. The maximum input current per string is 14A which is compatible with high-efficiency modules and bi-facial modules. Compact and lightweight design bring easy installation. The protection level is increased to IP66. Integrated AFCI function can proactively reduce the risk of fire.
Solis Mini Series Inverter
Leading Features:
• Max. efficiency 97.7%
• Compact and lightweight
• String current up to 14A
• Super high frequency switching technology
• Wide voltage range and low startup voltage
• 2 MPPT design with precise MPPT algorithm
• Intergrated Export Power Manager (EPM)
• Integrated AFCI (DC arc-fault circuit protection)
• Friendly and adaptable connection to the grid
- Manufacturer Solis
- Phases 1 Phase
- Inverter Application Residential
- Power Rating kW 2.5
- Inverter Type String Inverter
- Built in DC Yes
- No. of MPPT 2
- Built in Communication Optional
- Commodity Code 85044085
- Dimensions (mm) (H x W x D) 543 x 310 x 160
