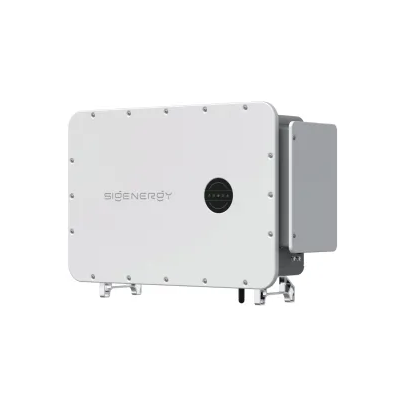

Sigenergy Sigen PV 100M1-HYA

SKU: SIG-11010134

SIG-11010134

The SIG-11010134 Sigenergy Sigen PV 100M1-HYA is a high-performance 100 kW three-phase solar inverter designed for commercial and industrial PV installations. With eight MPPT trackers, advanced safety features, and IP66 protection, it ensures high efficiency, reliability, and seamless system integration.

Seen a better price?
Login to see Trade Prices
  • Manufacturer Sigenergy
  • Phases 3 Phase
  • Inverter Type Hybrid Inverter
  • No. of MPPT 8

Sigenergy Sigen PV 100M1-HYA – High-Efficiency 100 kW Solar Inverter

Maximise Solar Energy Output for Large-Scale Projects

The SIG-11010134 Sigenergy Sigen PV 100M1-HYA is a powerful 100 kW three-phase solar inverter, engineered for high-performance commercial and industrial PV systems. Delivering 98.6% peak efficiency, it optimises power conversion, minimising energy losses and maximising output.

Enhanced Energy Harvesting with Multi-MPPT Design

  • Supports up to 200,000 Wp of PV input power, enabling flexible system configurations.
  • Eight Maximum Power Point Trackers (MPPTs) ensure precise tracking across multiple strings, improving overall efficiency.
  • Wide MPPT voltage range of 160-1,000 V, ensuring optimal performance under varying sunlight conditions.

Industry-Leading Safety and Protection Features

  • Arc Fault Circuit Interrupter (AFCI) technology enhances fire safety.
  • Instant PV reverse connection alert prevents incorrect wiring.
  • IP66-rated enclosure ensures resistance to dust, water, and extreme weather conditions.
  • Built-in DC and AC surge protection, safeguarding the inverter from voltage fluctuations.

Streamlined Installation and Easy Integration

  • Compact and lightweight design (918 x 640 x 340 mm, 75 kg) for quick installation.
  • Supports multiple inverters in parallel, reducing system complexity and eliminating the need for an external data logger.
  • Plug-and-play MC4 connectors for DC input and OT/DT terminal connections for AC output simplify system setup.

Smart Monitoring and Communication

  • Integrated WLAN, Fast Ethernet, and RS485 connectivity for real-time system monitoring.
  • Compatible with Sigen CommMod, enabling advanced remote control and energy management.
  • Supports optional 4G/3G/2G connectivity, ensuring remote access and system diagnostics.

Built to Perform in Harsh Environments

  • Wide operating temperature range: -30°C to 60°C, ensuring reliable performance in extreme conditions.
  • Altitude tolerance up to 5,000m (derating above 4,000m) for high-altitude installations.
  • Smart air cooling system ensures stable operation under heavy loads.

The Perfect Choice for Large-Scale Solar Installations

With high efficiency, advanced safety, and robust scalability, the SIG-11010134 Sigenergy Sigen PV 100M1-HYA is the ideal solution for installers looking to maximise energy yield and system reliability in commercial and industrial solar projects.
