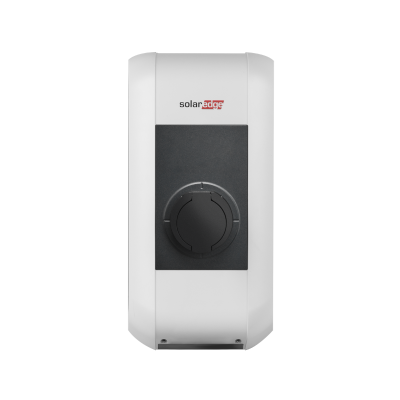

SolarEdge 22kW Three Phase EV Charger - Socket Type 2 with RFID and MID

SKU: SE-EVK22SRM-01

SE-EVK22SRM-01
NEW

The SolarEdge Smart EV Charger integrates seamlessly with the SolarEdge Home ecosystem enabling homeowners to control and optimise all household energy from the mySolarEdge app.
This is the untethered three phase unit, a single phase unit is also available. The EV chargers are compatible with SolarEdge SetApp-enabled residential inverters up to 15kW excluding the Single Phase Inverter with Compact Technology.

Seen a better price?
Login to see Trade Prices
  • Manufacturer SolarEdge Technologies
  • Phases 3 Phase
  • EV Power Rating kW 22
  • Dimensions (mm) (H x W x D) 643 x 240 x 142

Residential EV charging solution that seamlessly integrates with the full SolarEdge Home ecosystem

  • Enables EV charging from 100% renewable energy, using excess solar power
  • Integrates seamlessly into the SolarEdge ecosystem with monitoring and control of PV and EV from a single app
  • Enables smart charging with custom scheduling features, allowing automatic charging during low-rate periods
  • Optional RFID card authentication and MID meter
  • G100 Issue 2 Amendment 2 compliant
  • Tamper protection - designed to detect and alert of tamper attempts
  • Maximizes self-consumption and optimizes use of renewable energy
  • 3-year warranty from one single vendor, easier servicing, better quality control
  • Protection from main circuit breaker tripping using dynamic balancing of charging power output
  • Mode 3 charger combining PV and grid electricity
  • Dynamic load balancing
  • Tethered 6m Type 2 cable included

Installation Requirements

  • Must install an Earth Electrode
  • Residential systems only
  • Maximum of three per site (More than one smart EV chargers together will be available in a future firmware release)
  • Must be installed with a system that contains an inverter and meter
  • Installed vertically on an appropriate wall surface
  • There are three options for communication with the cloud and inverter via the local network router:
    • 1. Ethernet
    • 2. LSA+
    • 3. Wi-Fi

mySolarEdge Integration

  • Seamless integration with the SolarEdge monitoring platform
  • Homeowners can track their charging status, control vehicle charging, and set charging schedules
  • Key features:
    • Smart-scheduling for use with Time-of-Use (TOU) rates — charge from the grid during off-peak hours
    • Manual TOU – schedule one off events
    • Track PV, EV, and grid consumption
    • Device prioritization
    • Operate remotely via app — turn charging on and off from anywhere, anytime
    • View charging duration, charge energy, and percent charge from PV
    • Expense report generation
