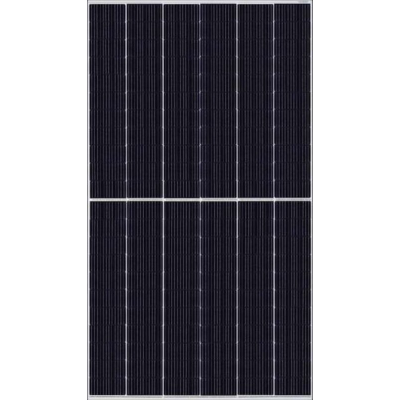

Trina Solar 445W Vertex S+ Dual Glass N Type i-TOPCon Solar Module - Black Frame/White Backsheet

Trina 445 W photovoltaic module from the Vertex S+ range is made of monocrystalline cells with 210 silicon wafer in i-Topcon N-type technology.

Vertex S + has several innovative design features that allow it to achieve high output power. Perfect temperature coefficient and low irradiation efficiency provide even more power. Moreover thanks to the high-density connections the efficiency of the Vertex S + can reach up to 22.5%.

Multi-busbar technology used in Trina Vertex S + modules integrates advanced non-destructive cutting and high-density encapsulation technologies. It is also responsible for increased light absorption and fits perfectly into cells with a large surface area. The technology integration allows Vertex to achieve higher power and efficiency of generating energy per watt.

The N-type cells are made using phosphor which allows them to achieve a lower rate of power degradation which translates into higher efficiency for many years of use resulting in more savings. It is thanks to this technology that the manufacturer provides a 30-year warranty on the energy produced by the Trina Vertex S + modules.

Vertex S + TSM-NEG9R.28 photovoltaic modules are made up of 144 monocrystalline cells placed in a 30 mm thick frame made of anodized aluminium alloy  front and back covered with 1.6 mm thick heat strengthened high transparency glass. The modules have a 25-year warranty for the product and a 30-year warranty for performance.

The connection wires coming out of the IP68-rated boxes are terminated with an MC4 connector.
