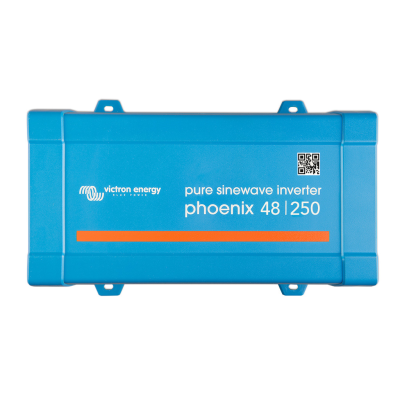

Victron Phoenix Inverter 48V/250VA/230V VE.Direct with Schuko Socket
SKU: PIN481251200
Victron Phoenix Inverter 48V/250VA/230V VE.Direct with Schuko Socket
The full bridge topology with a toroidal transformer has demonstrated its reliability for years.
The converters are protected against short circuits and overheating, whether in case of overload or high ambient temperature.
VE.Direct communication port
The VE.Direct port can be connected to:
- A computer with the VE.Direct > USB interface cable (RG1060277)
- Apple and Android smartphones, tablets, Macbooks and other devices with the Bluetooth Smart dongle (RG1060280)
Fully configurable:
- Reset levels and alarm triggering in case of low battery voltage
- Restart Levels and Shutdown for Low Battery Voltage
- Output voltage from 210V to 245V
- Output frequency 50Hz or 60 Hz
- ECO mode detection level and ECO mode on/off
Monitoring :
- Current and voltage alarms, input and output
- Manufacturer Victron Energy
- Commodity Code 85044085
- Dimensions (mm) (H x W x D) 210 x 300 x 150
- IP Rating IP21
Strong starting power
Needed to start loads such as power converters for LED, halogen bulbs or power tools.
ECO mode
In ECO mode, the converter will switch to pause if the load drops below a predetermined value. Once paused, the converter will turn on for a short period of time (adjustable; default: every 2.5 seconds). If the load exceeds a pre-configured level, the converter will remain on.
Remote On/Off
A remote on/off switch can be connected to a two-pole connector or between the positive pole of the battery and the left contact of the two-pole connector.
Diagnostic LED
See manual.
To transfer the load to another AC source: the automatic transfer switch
For our low power converters we recommend the use of our Filax automatic transfer switch. Filax boasts a very fast transfer time (less than 20 milliseconds) so that computers and other electronic equipment can continue to operate without interruption.
