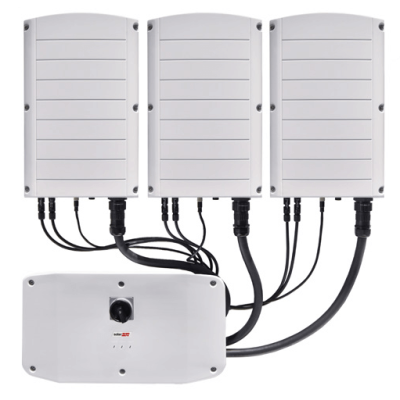

SolarEdge Synergy 90kW Solar Inverter - 3 Phase with MC4 Connectors (EU Base)
SKU: SE90K-RW00IBNM4
Powered by unique pre-commissioning process forrapid system installation
• Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection
• Easy 2-person installation with lightweight, modular design (each inverter consists of 2 or 3 Synergy Units and one Synergy Manager)
• Independent operation of each Synergy Unit enables higher uptime and easy serviceability
• Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
• Built-in arc fault protection and optional rapid shutdown
• Built-in PID mitigation for maximized system performance
• Monitored* and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD
• Optional integrated DC safety switch eliminates the need for external DC isolators
• Built-in module-level monitoring with Ethernet or cellular communication for full system visibility
Note: Secondary units are sold separately - 3 required for SE90K.
- Manufacturer SolarEdge Technologies
- Phases 3 Phase
- Power Rating kW 90
- Inverter Type Optimised Inverter
- Built in DC No
- No. of MPPT N/A
- Built in Communication Optional
- Commodity Code 85044085
- Dimensions (mm) (H x W x D) 558 x 328 x 273
