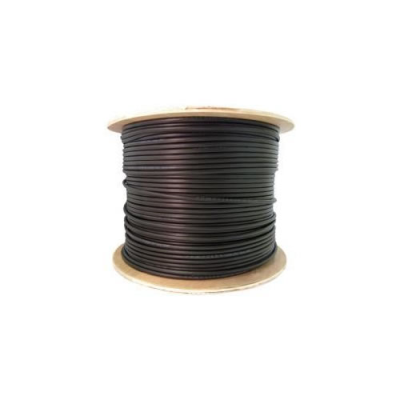

Solar Cable - Black 6.0mm - 500 Meter Reel
SKU: CCL-SC6500BLK
The 6mm black Solar Cable comes in a 500m reel and gives the perfect amount for any residential solar system, working in perfect harmony with SunClix or Staubli connectors.
- Cable Solar Cable
- Cable Length 500m
- Cable Diameter 6mm²
- Commodity Code 85444991
- Dimensions (mm) (H x W x D) 400 x 400 x 320
- TUV Approved
- Conductor: Tinned copper class 5 CEI EN 60228 (CEI 20-29)
- Insulation: Halogen-free elastomer TÜV pfg 1169/08.2007 CEI EN 50363 (CEI 20-11)
- Outer sheath: Halogen-free elastomer TÜV pfg 1169/08.2007 CEI EN 50363 (CEI 20-11)
- Min bending radius: Cable fix standing 15 x Ø cable, move standing 6 x Ø cable
- Working temperature: -40 °C +90 °C
- Maximum short circuit temperature: +200 °C (5s Max)
- Test tension: 6.500 Vac 15.000 Vdc
- Electric resistance: test according to CEI 20-29 EN60228 Cl. 5
- Vertical N.P. test: test according to CEI EN 60332-1-2
