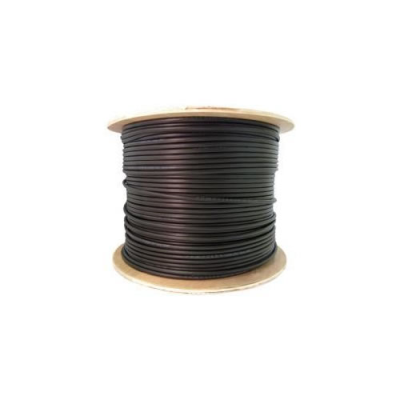

Solar Cable - Black 4.0mm - 500 Meter Reel

SKU: CCL-SC4500BLK

The 4mm black Solar Cable comes in a 500m reel and gives the perfect amount for any residential solar system, working in perfect harmony with SunClix or Staubli connectors.

  • TUV Approved
  • Conductor: Tinned copper class 5 CEI EN 60228 (CEI 20-29)
  • Insulation: Halogen-free elastomer TÃœV pfg 1169/08.2007 CEI EN 50363 (CEI 20-11)
  • Outer sheath: Halogen-free elastomer TÃœV pfg 1169/08.2007 CEI EN 50363 (CEI 20-11)
  • Min bending radius: Cable fix standing 15 x Ø cable, move standing 6 x Ø cable
  • Working temperature: -40 °C +90 °C
  • Maximum short circuit temperature: +200 °C (5s Max)
  • Test tension: 6.500 Vac 15.000 Vdc
  • Electric resistance: test according to CEI 20-29 EN60228 Cl. 5
  • Vertical N.P. test: test according to CEI EN 60332-1-2

Not CCA Approved for Belgium market.

Only DCA Approved.

Seen a better price?
Login to see Trade Prices
  • Cable Solar Cable
  • Cable Length 500m
  • Cable Diameter 4mm²
  • Commodity Code 85444991
  • Dimensions (mm) (H x W x D) 400 x 400 x 320
