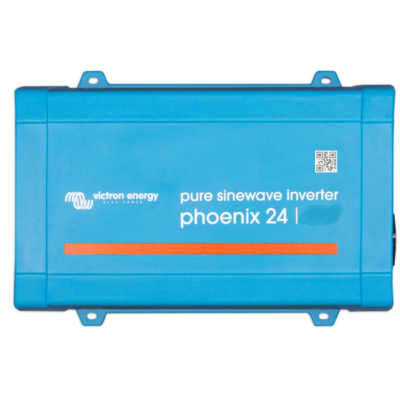

Victron Phoenix Inverter 24V/375VA/230V VE.Direct with Schuko Socket
SKU: PIN241371200
The Phoenix 24/375 VE.Direct inverter allow you to power domestic equipment “ requiring 230V “ using leisure or automotive batteries rated at 12V, 24V or 48V DC.
This unit has the schuko plug.
- Manufacturer Victron Energy
- Commodity Code 85044083
- Dimensions (mm) (H x W x D) 86 x 165 x 260
VE.Direct communication port
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, MacBooks and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 “ 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
Monitoring:
- In- and output voltage, % load and alarms
Proven reliability
- The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 24/375 VE.Direct are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
- Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
- When in ECO mode, the Phoenix Inverter 24/375 VE.Direct will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off
- A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
