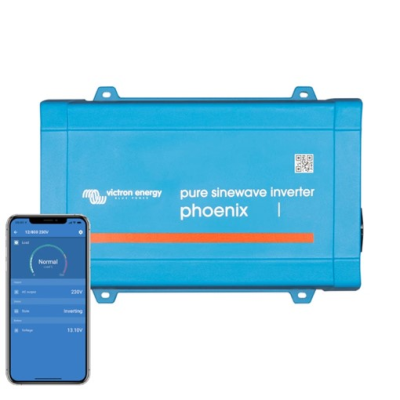

Victron Phoenix Inverter 48V/800VA/230V VE.Direct with IEC S
SKU: PIN481801100
The Phoenix 48/800 VE.Direct inverter allows you to power domestic equipment – requiring 230V – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.
This unit has the IEC plug.
Features of the Phoenix Inverter 48/800 VE.Direct
VE.Direct communication port
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 – 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
Monitoring:
- In- and output voltage, % load and alarms
- Manufacturer Victron Energy
- Commodity Code 85044083
- Dimensions (mm) (H x W x D) 105 x 216 x 305
Proven reliability
- The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 48/800 VE.Direct are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
- Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
- When in ECO mode, the Phoenix Inverter 48/800 VE.Direct will switch to standby when the load decreases below a pre-set value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a pre-set level, the inverter will remain on.
Remote on/off
- A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
DC connection with screw terminals
- No special tools needed for installation.
Monitor, operate & control your system
- VictronConnect lets you get live status information and configure your Phoenix Inverter 248/800 VE.Direct when connected to a VE.Direct Bluetooth Smart Dongle.
The REC040010210R is the correct controller for the Phoenix Inverter VE.Directs.
