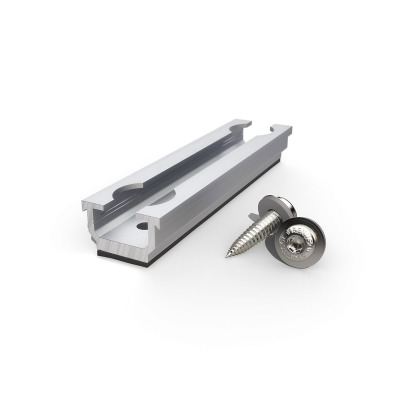

Renusol MetaSole+ Landscape Trapezoidal Mounting
MetaSole+ is designed for PV systems mounted on trapezoidal & corrugated metal sheet roofs.
- Manufacturer Renusol
- Mounting Type On Roof
- Mounting Part Roof Anchor - Trapezoidal
- Commodity Code 76042100
- Dimensions (mm) (H x W x D) 17 x 125 x 31
PV-Mounting system for metal sheet roofs
This system allows you to reduce transport costs due to the small size, saves storage space and facilitates the handling on site. This simple system allows a quick and smooth mounting. The pre-attached EPDM strip protects the mounting surface against water intrusion. Adhesive strips ensure an easy pre-positioning of the MS+ to the assembly point.
- Metal Sheet Thickness: Steel 0.40-1.25mm/Aluminium 0.50-1.50mm.
- Material: Material Stainless steel, Aluminium and EPDM (pre-attached).
- Suitable for: PV modules with frame height from 30 to 50 mm.
- Application: Pitched metal sheet roof.
- Orientation: Horizontal/landscape.
