SMA Sunny Highpower PEAK3 100kW Solar Inverter - Three Phase

SKU: SHP100-21

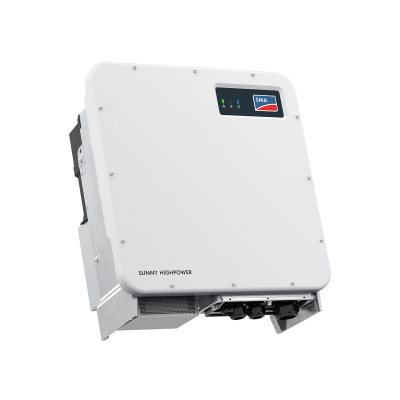

PEAK3 stands for pure power. With its compact design, the inverter offers the highest power density per device. The advantages: optimal performance at a light weight. The result is cheaper transportation and easier installation. In combination with the project-specific DC Combiner Boxes, the PV array can be oversized up to 150 %. The Data Manager completes the system and enables it to fulfil all of the grid operator’s requirements.

The SMA Sunny HIghpower PEAK3 PV inverter is for grid feed-in Pac,r/Sac. Max 100000 W / 100000 VA, 400 Vac, 1000 Vdc, three-phase feed-in, with reactive power supply, transformer-less, Ethernet interface, browser-based setup of country settings, integrated over-voltage protection DC (Type II) and AC (Type II),1 MPP tracker and an additional DC combiner box needed

Seen a better price?
Login to see Trade Prices
  • Manufacturer SMA Solar
  • Phases 3 Phase
  • Power Rating kW 100
  • Inverter Type String Inverter
  • Built in DC Yes
  • No. of MPPT 1
  • Built in Communication Integrated
  • Off-Grid Compatible Yes
  • Commodity Code 85044086
  • Dimensions (mm) (H x W x D) 830 x 770 x 444

Rated output AC power at nominal voltage: 100 kWp
AC nominal voltage: 400 V
MPP voltage range: 590 V – 1000 V
Max. Input current DC: 180 A
Number of MPP trackers: 1
Ethernet interface: 2 ports RJ45
Cooling method: Active cooling, speed-controlled fan
Degree of protection: IP65
Dimensions: 770 / 830 / 444 mm
Weight: 98 kg
Mounting type: Rack mounting
Warranty: 5years
