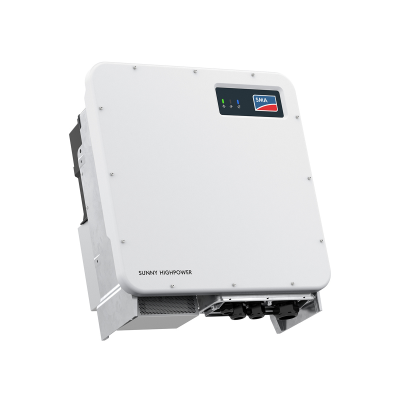

SMA Sunny Highpower PEAK3 150kW Solar Inverter - Three Phase

SKU: SHP150-21

SMA Sunny Highpower PEAK3
SALE

PEAK3 stands for pure power. With its compact design, the inverter offers the highest power density per device. The advantages: optimal performance at a light weight. The result is cheaper transportation and easier installation. In combination with the project-specific DC Combiner Boxes, the PV array can be oversized up to 150 %. The Data Manager completes the system and enables it to fulfil all of the grid operator’s requirements.

Seen a better price?
Login to see Trade Prices
  • Manufacturer SMA Solar
  • Phases 3 Phase
  • Power Rating kW 150
  • Inverter Type String Inverter
  • Built in DC Yes
  • No. of MPPT 1
  • Built in Communication Integrated
  • Off-Grid Compatible Yes
  • Commodity Code 85044086
  • Dimensions (mm) (H x W x D) 640 x 1150 x 850

Rated output AC power at nominal voltage: 150 kWp
AC nominal voltage: 600 V
MPP voltage range: 880 V – 1450 V
Max. Input current DC: 180 A
Number of MPP trackers: 1
Ethernet interface: 2 ports RJ45
Cooling method: Active cooling, speed-controlled fan
Degree of protection: IP65
Mounting type: Rack mounting
Warranty: 5years
