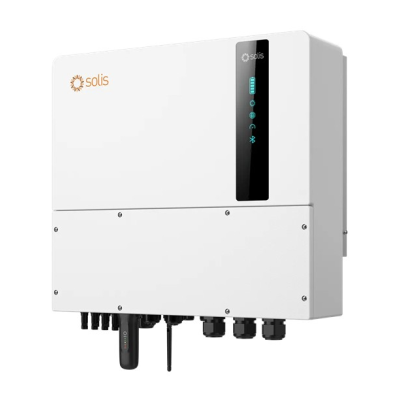

Solis S6 10kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid - Without Display

SKU: S6-EH3P10K-LV-ND-H

S6-EH3P10K-LV-ND-H

Solis S6 10 kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid – Without Display: four-MPPT, 20 kW PV, 10 kW HV storage, < 10 ms backup, 100 % phase imbalance, IP66, 96.7 % efficiency—an all-in-one solution for smart three-phase solar-plus-storage.

Seen a better price?
Login to see Trade Prices
  • Manufacturer Solis
  • Phases 3 Phase
  • Inverter Type Hybrid Inverter

Solis S6 10 kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid – Without Display



Market fit
The Solis S6 10 kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid – Without Display gives commercial-scale installers a single box that manages 20 kW of PV, 10 kW of high-voltage storage and seamless UPS-grade backup on a 230 V three-phase supply. Four MPPT trackers (200–850 V window, 4 × 20 A) allow 160 % PV oversizing, letting you reclaim winter yield without adding another inverter.



Key electrical capabilities

PV side – 1 000 V DC max, 20 kW array, 16 kW usable, 96.70 % peak efficiency, integrated DC switch and optional AFCI 2.0.

Battery side – 120–800 V HV Li-ion, 10 kW / 50 A charge and discharge, CAN / RS-485 closed-loop control.

Grid side – 10 kW / 10 kVA export, supports 100 % phase imbalance and up to 40 % of rated power per phase; < 3 % THDi.

Backup – < 10 ms transfer, 10 kW continuous, 1.6 × overload for 10 s; THDv < 2 %.

Generator port – auto-start ready, 10 kW, 25.1 A.



Smart-energy functions

AI scheduling for time-of-use tariffs, VPP and EMS hooks.

Built-in control for SG-ready heat pumps.

Parallel firmware for future power or storage expansion and AC-coupled retrofits.

Bluetooth app plus Ethernet/RS-485 standard; Wi-Fi or cellular optional.



Installer advantages

MC4 PV plugs and OT lugs for AC and battery mean one-visit commissioning.

Phase-unbalanced output eliminates costly load-split panels.

All-in-one hardware reduces BOS count: fewer combiner boxes, fuses and cables.

Remote firmware updates and string-level diagnostics lower O&M truck rolls.



Application sweet spots

Three-phase homes or small businesses wanting whole-site backup without gensets.

PV-heavy sites aiming to shift daytime surplus into evening peak-rate windows.

Projects that need generator integration today and V2X readiness tomorrow.



Deploying the Solis S6 10 kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid – Without Display lets installers quote higher PV oversizing, faster switch-over and smarter load control—all in a durable IP66 package tested to the latest European grid codes.
