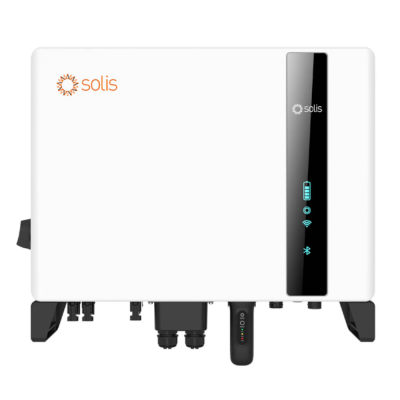

Solis S6 10kW 3 Phase Hybrid Inverter with DC - 2 MPPT for HV Batteries (WIFI/LAN)
SKU: S6-EH3P10K2-H
Solis S6 10 kW 3 Phase Hybrid Inverter with DC – 2 MPPT for HV Batteries (WIFI/LAN): 20 kW PV input, 10 kW/50 A HV storage, <10 ms backup, 97.9 % efficiency, IP66, peak-shaving and Wi-Fi monitoring—ideal for smart, resilient three-phase sites.
Solis S6 10 kW 3 Phase Hybrid Inverter with DC – 2 MPPT for HV Batteries (WIFI/LAN)
Built for small-commercial and high-end residential systems, the Solis S6 10 kW 3 Phase Hybrid Inverter with DC – 2 MPPT for HV Batteries (WIFI/LAN) combines high-voltage storage, smart grid support and UPS-grade backup in a single IP66 package that weighs just 30.2 kg. Two MPPT trackers accept 1 000 V strings and 16 A per input, allowing 20 kW DC of modules—160 % PV oversizing—while delivering 16 kW continuous to the inverter.
Flexible PV design
- 200–850 V MPPT window simplifies string layout on complex roofs.
- MC4 connectors and quick-fit AC/battery plugs cut wiring time.
High-voltage battery interface
- 120–600 V lithium range; 10 kW / 50 A bidirectional power for rapid charge or discharge.
- CAN/RS-485 closed-loop control supports leading HV rack brands; pre-made battery, meter and CAN looms included.
Seamless backup & load management
- Automatic transfer < 10 ms keeps IT and HVAC online.
- 16 kVA surge (60 s) starts motors and compressors.
- Unbalanced and half-wave loads permitted; each phase may run up to 50 % of rated power.
Efficiency that protects ROI
- PV→AC max efficiency 97.9 %; PV→battery 98.3 %.
- Night self-use < 25 W preserves stored energy.
Smart-grid & monitoring features
- Built-in Wi-Fi / LAN plus Bluetooth commissioning; SolisCloud portal offers live and historic data, remote FW updates and alerting.
- Peak-shaving mode caps site demand; AI scheduler charges during low-tariff hours and discharges at peaks.
- Optional AFCI 2.0 arc detection and Type II AC/DC SPDs enhance rooftop safety and compliance.
Rugged, installer-friendly hardware
- Dimensions: 600 × 500 × 230 mm; single-person lift onto supplied wall bracket.
- Natural convection keeps noise below 46.9 dB; aluminium chassis endures –25 °C to +60 °C and 4 000 m altitude.
- 100 % phase-imbalance support eliminates costly load-split boards on lightly loaded sites.
Standards & grid codes
Certified to IEC/EN 62109-1/-2 safety and EN 50549-1, VDE 4105, G99 and other European grid standards, the inverter ships grant-ready for rapid DNO approval.
