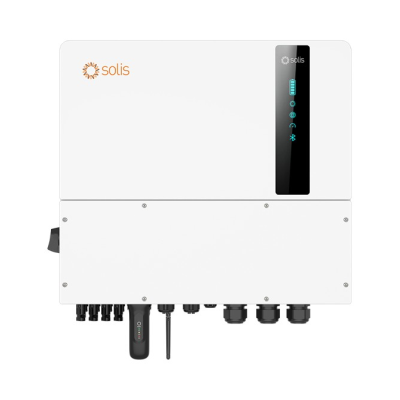

Solis S6 8.0kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid - Without Display

• Manufacturer Solis
• Phases 3 Phase
• Inverter Type Hybrid Inverter

Solis S6 8.0 kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid – Without Display

Designed for small commercial and premium residential sites, the Solis S6 8.0 kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid – Without Display unites 16 kW of PV, an 8 kW high-voltage battery channel and seamless UPS-grade backup in one IP66 aluminium chassis. Four independent MPPTs (200–850 V, 4 × 16 A) let you oversize the array to 160 % so winter harvest isn’t left on the roof, while transformer-less conversion delivers up to 96.7 % peak efficiency and < 25 W night self-use to protect stored energy.

Core electrical capability

PV side 1 000 V DC max · 16 kW array · 12.8 kW usable input

Battery side 120–800 V HV lithium · 8 kW / 50 A charge-discharge (CAN / RS-485)

Grid output 8 kW / 8 kVA at 3/(N)/PE 133 V / 230 V · 100 % phase-imbalance · THDi < 3 %

Backup output < 10 ms transfer · 8 kW continuous · 1.6× overload (10 s) · THDv < 2 %

Generator input 8 kW auto-start ready

Smart-energy functions

AI scheduling charges/discharges around time-of-use tariffs.

Native VPP and EMS hooks plus built-in SG-ready heat-pump relay.

Parallel and AC-coupled expansion firmware enables future capacity boosts.

Bluetooth app commissioning; Ethernet standard, Wi-Fi/cellular optional for SolisCloud analytics.

Mechanical & protection data

563 × 546 × 235 mm · 32.6 kg—one-person lift.

Operating –25 °C…+60 °C, 4 000 m altitude; intelligent fan cooling, < 65 dB.

Night self-consumption < 25 W; LED status replaces a vulnerable screen.

Integrated DC switch, reverse-polarity, Type II AC/DC SPDs, anti-islanding; optional AFCI 2.0 for roof-top arc mitigation.

IP66 ingress, transformer-less topology, and 100 % recyclable aluminium shell for tough environments.

Installer advantages

MC4 PV plugs and OT lugs for AC/battery speed first-fix wiring.

160 % oversizing and 100 % phase-imbalance cut combiner boxes, load-split boards and overall BOS cost.

String-level diagnostics, remote firmware updates and < 10 ms backup switching reduce call-outs and keep critical loads online.

Certified to IEC 62109-1/-2, EN 50549-1/-10, VDE 4105 and G99, easing DNO approval.

With high-voltage storage, rapid backup and tariff-aware intelligence, the Solis S6 8.0 kW 3 Phase Hybrid Inverter for HV Batteries, LV Grid – Without Display delivers reliable, future-proof self-consumption for every three-phase solar-plus-storage installation.
