SMA Three Phase Multicluster Box 6

SKU: MC-BOX-6.3

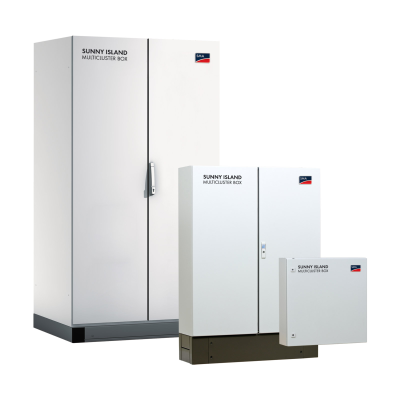

Multicluster Box - Three Phase for up to 6x SMA Sunny Island 6.0/8.0



Seen a better price?
Login to see Trade Prices
  • Manufacturer SMA Solar
  • Accessory Product Type Combiner Boxes
  • Commodity Code 85371098
  • Dimensions (mm) (H x W x D) 760 x 760 x 210

Multicluster Box - Three Phase for up to 6x SMA Sunny Island 6.0/8.0

The power of the AC main distribution unit for Sunny Island systems has been increased by 20%. This allows off-grid and hybrid systems in the power ranges of 20 to 300kW to be implemented even more cost-effectively. The specific costs for the overall system are being reduced thanks to a maximum PV output of 360kW and the flexible design capability of the SMA Sunny Island 6.0H / 8.0H. Based on proven technology, 2 to 12 three-phase clusters, each consisting of 3 Sunny Island inverters, can be connected in parallel. To simplify installation, all Multicluster Boxes are completely wired and fitted at the factory and have a main connector for generators, the load distribution and PV or wind turbine systems. All data cables required for the installation are included in the delivery. With the Multicluster solution for Sunny Island, you really have thought of everything. Even complex energy supply solutions are easy to implement.

Flexible

• Three different power classes, from 20 kW to 300 kW
• Different generators, PV and load magnitudes

Simple

• Integrated AC distribution for Sunny Island, generator, PV
• Integrated load-shedding contactor

Safe

• Automatic bypass for the PV generator
• Active Anti-Islanding
• Reverse current monitoring

Robust

• High protection class IP65 (MC-Box-6.3-11)
• High protection class IP54 (MC-Box-12.3 / MC-Box-36.3-11)
• 5-year SMA warranty
