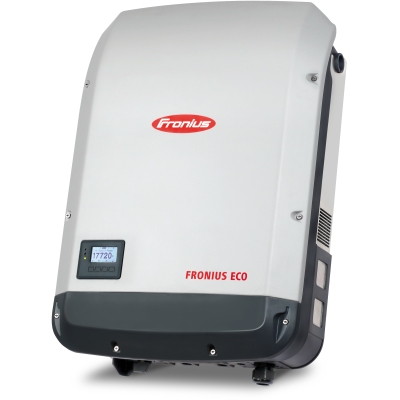

Fronius Eco 27kW Solar Inverter - Three Phase with Communication
The Fronius Eco, transformerless three phase inverter is the perfect inverter for large-scale installations. The characteristics of this inverter allows for a quick and easy install which can be carried out indoors or outdoors. Furthermore, the Fronius Eco range is setting market standards high with its IP66 protection class. With this inverter string collection boxes are no longer necessary due to its integrated double fuse holders and optional overvoltage protection.
- Manufacturer Fronius
- Weight 35.7 kg
- Phases 3 Phase
- Power Rating kW 27
- Inverter Type String Inverter
- Built in DC Yes
- No. of MPPT 1
- Built in Communication Integrated
- Off-Grid Compatible Yes
- Commodity Code 85044088
- Dimensions (mm) (H x W x D) 725 x 510 x 225
The user-friendly design of SnapINverter offers a simple installation and servicing process for the user. The connection and power stage set compartments are installed separately with the connection compartment and the cables mounted to the wall first, followed by the power stage set compartment. Thus when servicing the unit there is no need to detach the whole inverter; only the power stage set compartment needs to be removed, leaving cables, settings and configurations in place.
Integrated WLAN interface
Fronius have included simple data monitoring with this inverter with the WLAN interface. The inverter connects wirelessly and allows the user to monitor how the solar PV system is performing via the Fronius SolarWeb using an internet ready device.
Smart Grid Ready
Fronius have future-proofed their technology by equipping them for the Smart Grid of the future. Advanced Grid features have been built into these inverters, these include control functions for optimum feed-in of reactive/effective power. This functionality allows for stable grid operation even in circumstances when the solar PV density is very high and yield losses can be a resulting factor. This helps ensure the return of your PV system.
Dynamic Peak Manager
Dynamic Peak Manager is a new MPPT algorithm that changes when searching for the peak operating point. The full characteristic curve, routinely checks to find the global maximum power point (GMPP), even in partial shading.
