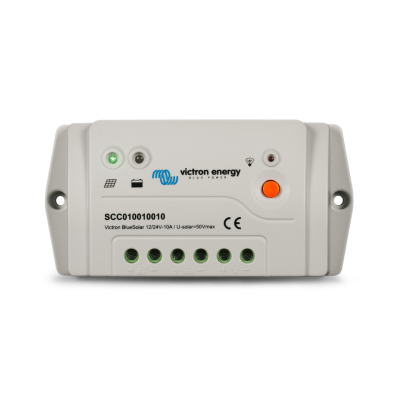

Victron BlueSolar PWM-Pro Charge Controller 12/24V-10A
BlueSolar PWM-Pro.The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
- Manufacturer Victron Energy
- Battery Voltage 12V, 24V
- Commodity Code 85044055
- Dimensions (mm) (H x W x D) 138 x 70 x 37
The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• Day/night timing options: see manual Remote Panel for details.
