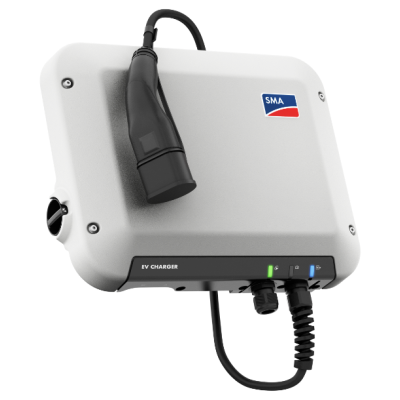

SMA EV Charging 22kW - Three Phase

SMA Solar SKU: EVC22-3AC-20

More Details
The SMA EV Charging 22kW - Three Phase is a PV-optimised smart charger offering fast, flexible EV charging. With intelligent solar integration, dynamic load balancing, and future-ready features, it’s built to support sustainable mobility across residential and commercial installations.
Documents

SMA EV Charging 22kW - Three Phase

The SMA eCharger EVC22-3AC-20 is a three-phase AC EV charger for wall-mounted charging installations. It supports configurable charging power up to 22 kW, with Type 2 vehicle connection and PV-optimised charging functions for use with solar self-generation.

Key Features
Three-phase AC charging

Supports 1N~ 230 V and 3N~ 400 V operation, with configurable charge power from 1.38 kW to 22 kW.

PV-optimised charging

Includes PV-optimised charging, intelligent charging modes, automatic phase switching and boost function.

Type 2 vehicle connection

Fitted with a Type 2 charging socket with shutter, in accordance with IEC 62196-1/2.

Protection and installation rating

IP54 ingress protection and IK10 impact resistance support installation in exposed environments.

Communication and authorisation

Supports OCPP 1.6-JSON, SMA Modbus, RFID authorisation and ISO 15118 vehicle communication.

Benefits
  • Supports charging from self-generated solar electricity, including periods of lower solar output via automatic phase switching.
  • Offers flexible three-phase or single-phase charging operation.
  • IP54 and IK10 ratings support external mounting where environmental exposure is a factor.
  • Compatible with common EV charging communication and authorisation methods used in managed installations.
Technical Summary

Model EVC22-3AC-20. Configurable charge power 1.38 kW to 22 kW. Nominal voltage 1N~ 230 V / 3N~ 400 V, 50/60 Hz. Maximum current 32 A per line conductor. Type 2 charging socket with shutter. Internal DC residual current detection 6 mA functional according to IEC 62955. External RCD type A 30 mA compatibility. Protection class I, overvoltage category III. Grid configurations TN, TT and IT. Dimensions 270 x 495 x 190 mm. Weight 5.0 kg. Standby self-consumption <6.5 W. Warranty five years.

Installation Notes

Wall-mounted AC EV charger with spring terminal AC connection. Suitable for TN, TT and IT grid configurations. Charging power can be limited by password protection, including a setting to 11 kW. Charging cable lengths listed as 5.0 m, 7.5 m and 10.0 m.

Efficiency

PV-optimised charging, forecast-based operation and automatic phase switching are intended to support use of self-generated solar electricity. Standby self-consumption is stated as <6.5 W.

Manufacturer

SMA Solar

Dimensions (mm) (H x W x D)

357 x 460 x 122

Commodity Code

8504409500

Weight (kg)

8
